Xi'an Heaven Abundant Mining Equipment CO.,LTD
$500-545 /Piece/Pieces
| Payment Type: | L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai,Tianjin,Qingdao |
Model No.: 3 7/8
Status: New
Warranty Period: Unavailable
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Not Available
Marketing Type: Ordinary Product
Place Of Origin: China
Part Name: Drill Bit
Owned Machinery: Drilling Tool
Material: Carbon Steel, Tungsten carbide tips and steel
Casting Or Forging: Forging
Application Industry: Well Drilling
Usage: Hole drilling
Application: Oil drilling and water well drilling
Packaging: Carton box
Unit Weight: 6kg
| Selling Units | Piece/Pieces |
| Package Type | Carton box |
| Packaging example |  |
The file is encrypted. Please fill in the following information to continue accessing it

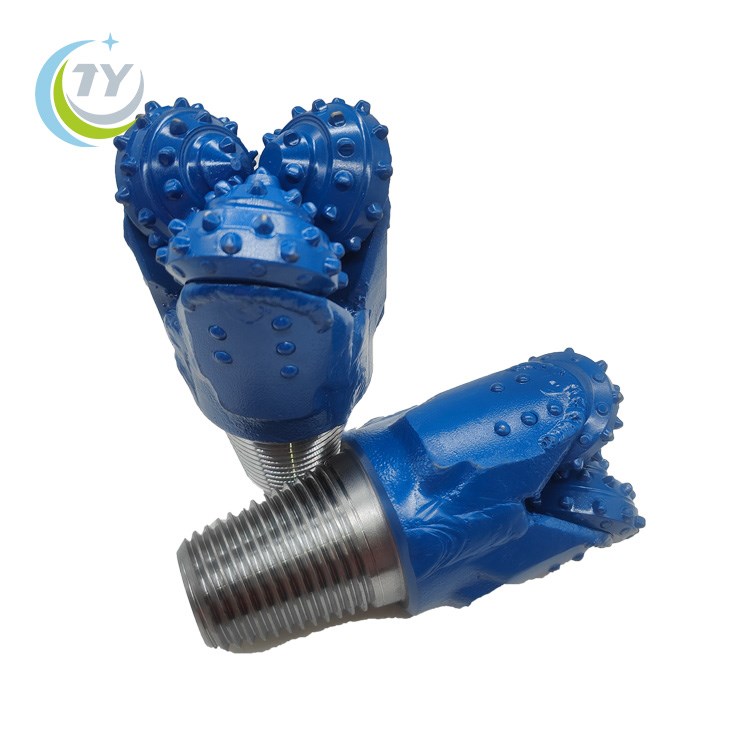

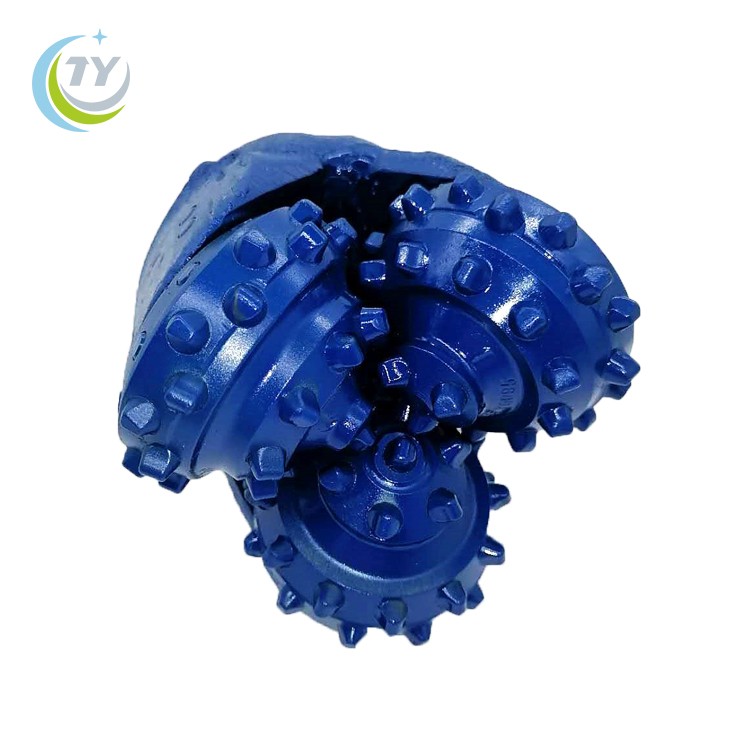

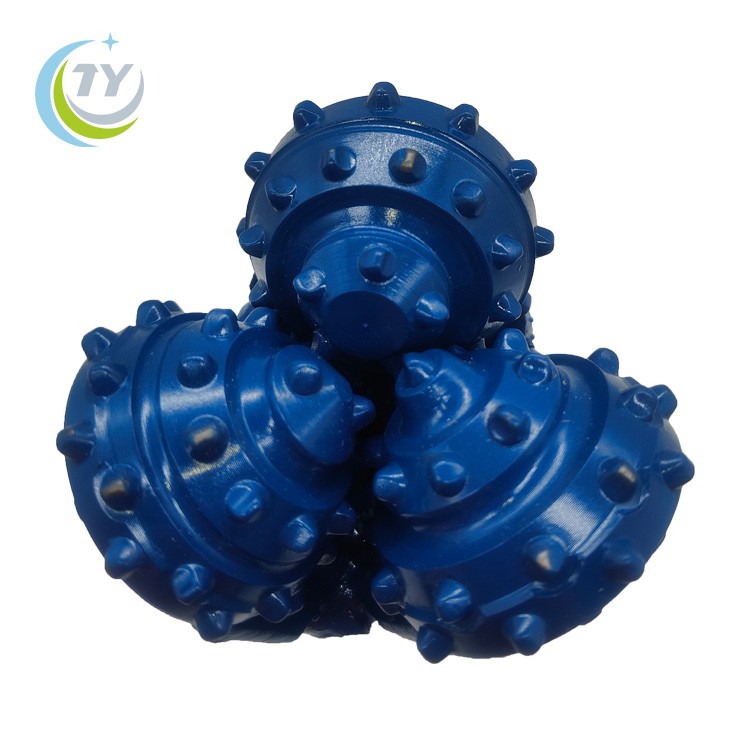

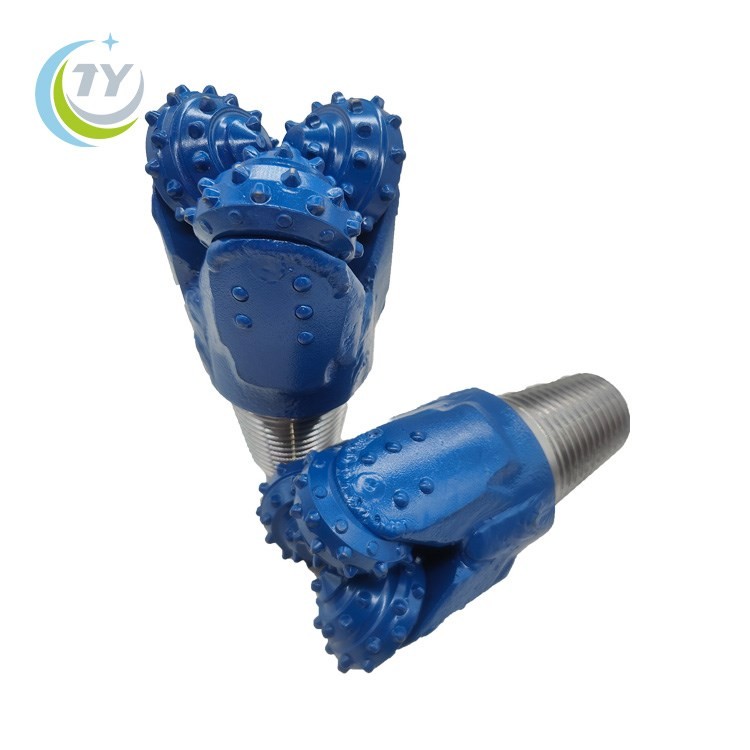

The roller cone bit is the most widely used tool in petroleum drilling and water well drilling. Tricone Bit has the function of impacting, crushing and shearing rock in formation, so it can adapt to soft, medium and hard formation. The cone bit can be divided into milling cone bit and TCI cone bit according to the type of teeth.
IADC | Parameters | Rock formation | |
Wob(kn/mm) | Rpm(r/min) | ||
116 117 | 0.35-0.8 | 150-80 | Low compressive strength extremely soft formation of high drillability, such as clay, mudstone, chalk |
126 127 | 0.35-0.9 | 150-70 | Low compressive strength soft formation of high drillability, such as Mudstone, gypsum, salt rock, soft shale, soft limestone |
136 137 | 0.35-1.0 | 120-50 | Low compressive strength soft to medium soft formation of high drillability such as anhydrite, soft shale, medium soft limestone, medium soft sandstone soft formations interlayer |
216 217 | 0.4-1.0 | 100-50 | High compressive strength medium soft formations , such as soft shale, anhydrite, soft limestone, medium soft sandstone and has a interlayer |
246 247 | 0.4-1.0 | 80-50 | High compressive strength medium hard formations such as abrasive shale, limestone, sandstone, dolomite and anhydrite, marble |
417 437 447 | 0.35-0.9 | 150-70 | Low compressive strength and high drill ability of extremely soft stratum, such as clay, shale, gypsum and halite, soft shale, soft limestone |
Xi'an Heaven Abundant Mining Equipment Co.,Ltd is one of the core bits manufacuturers and exporters in China. Our company adpots high quality raw material to produce quality products with good price since 2010, except for tricone bit, we also supply PDC Bit, Cutting Tools, rock drilling tools Impregnated Core Bit, and other drilling accessories. Welcome to contact us if you have any requirement of our product.
