Xi'an Heaven Abundant Mining Equipment CO.,LTD
$470-490 /Piece/Pieces
| Payment Type: | L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,Express Delivery,CFR,CIF,DAF,EXW,DES,FAS,FCA,CPT,CIP,DEQ,DDP,DDU |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Air,Land,Express |
| Port: | Shanghai/tianjin/guangzhou/qingdao/ningbo Etc |
Applicable Industries: Energy & Mining
Marketing Type: Ordinary Product
Product Name: 133mm PDC flat sintered matrix body drill bit for mining
Application: Coal Mining and water well drilling
Advantage: High Performance in soft to medium hard rocks
Weight: 7kg
Connect Thread: API standard pin or customized
Bit Type: Non core diamond bits
Usage: Hole Drilling
Our Popular Size: 56mm, 75mm, 94mm and 113mm, 153mm
Our Main Products: Mining consumbles and road milling machine spare parts
Status: New
Warranty Period: Unavailable
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Place Of Origin: China
Part Name: Drill Bit
Owned Machinery: Drilling Tool
Material: Carbon Steel
Casting Or Forging: Forging
Application Industry: Coal Mining
Place Of Origin: Shaanxi, China
| Selling Units | : | Piece/Pieces |
| Package Type | : | Packaging for 133mm PDC flat sintered matrix body drill bit for mining is in the carton box |
The file is encrypted. Please fill in the following information to continue accessing it

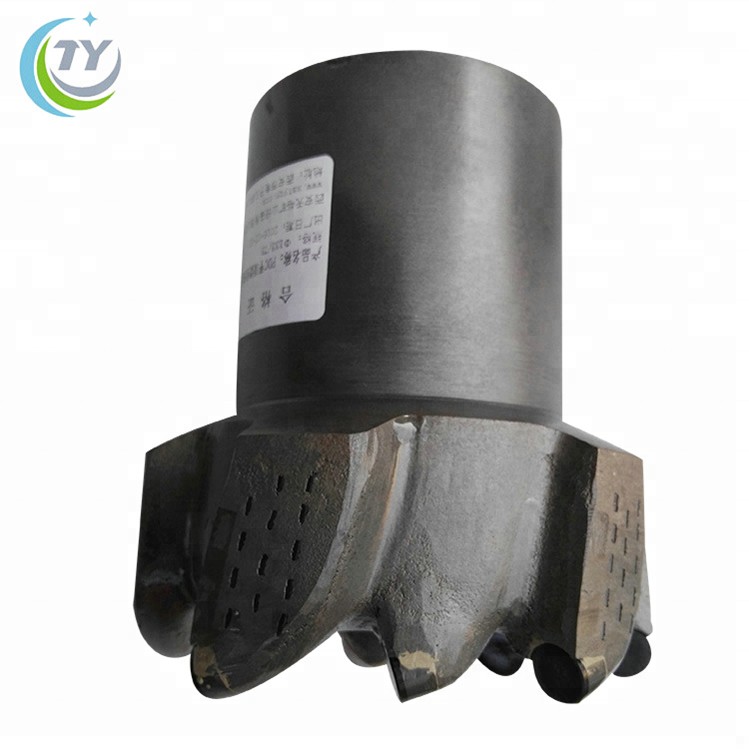

Product Description of 133mm PDC flat sintered matrix body drill bit for mining

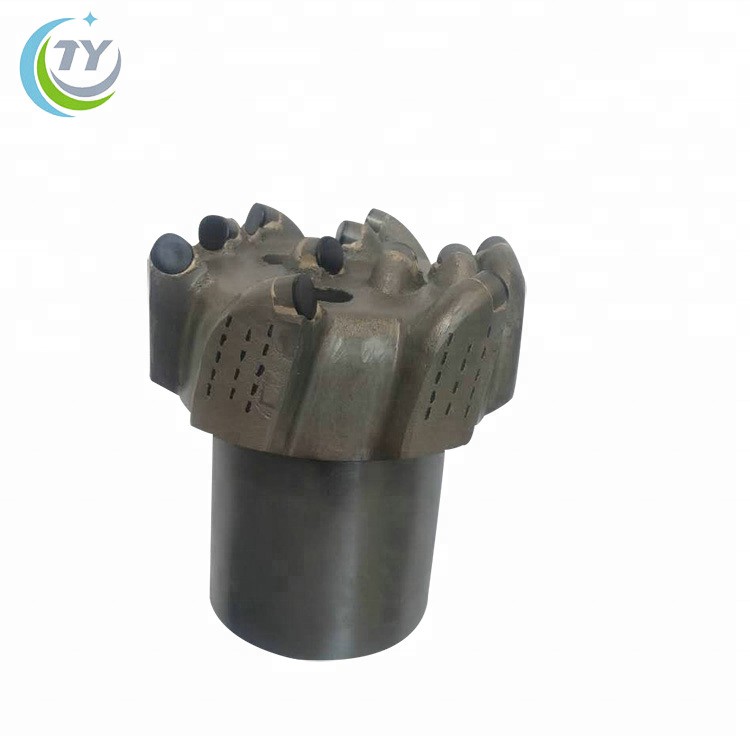

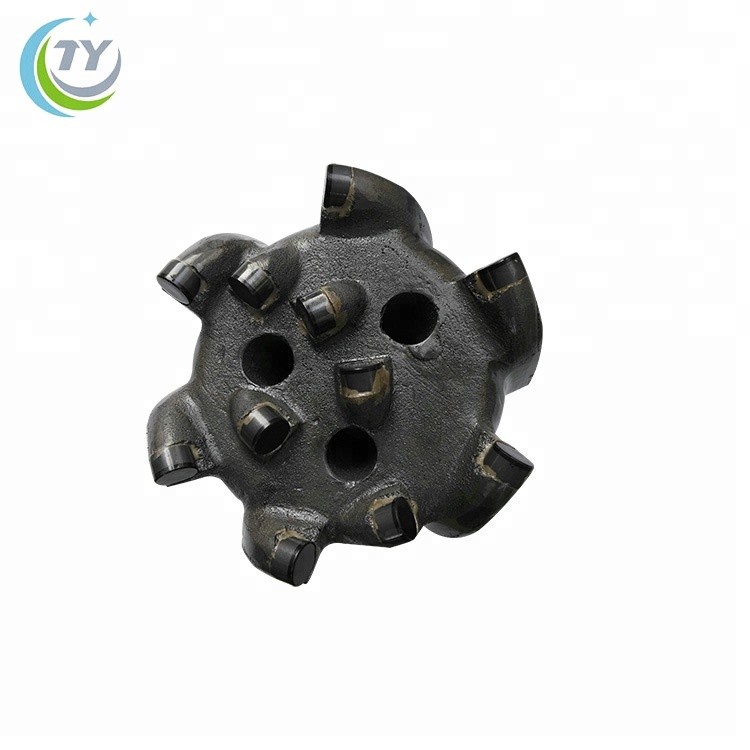

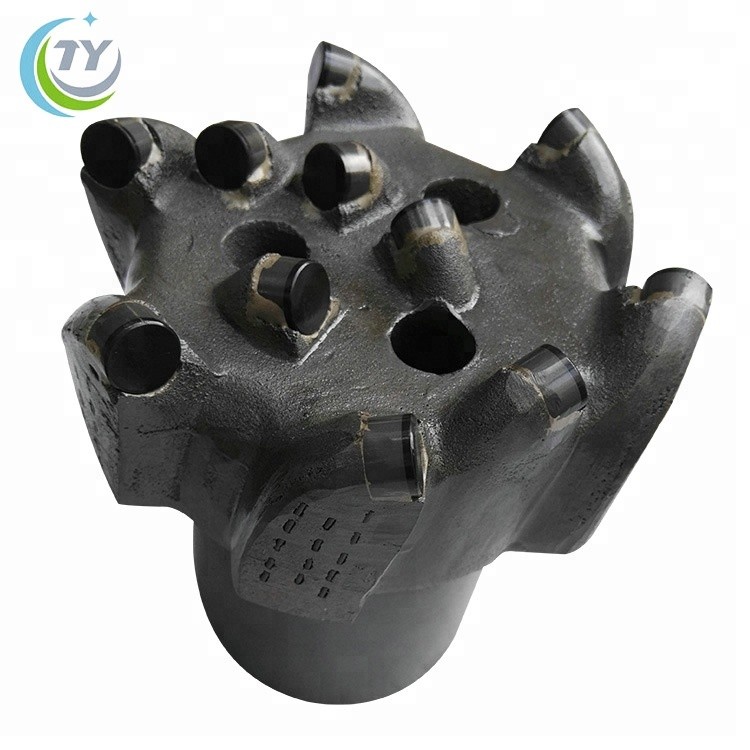

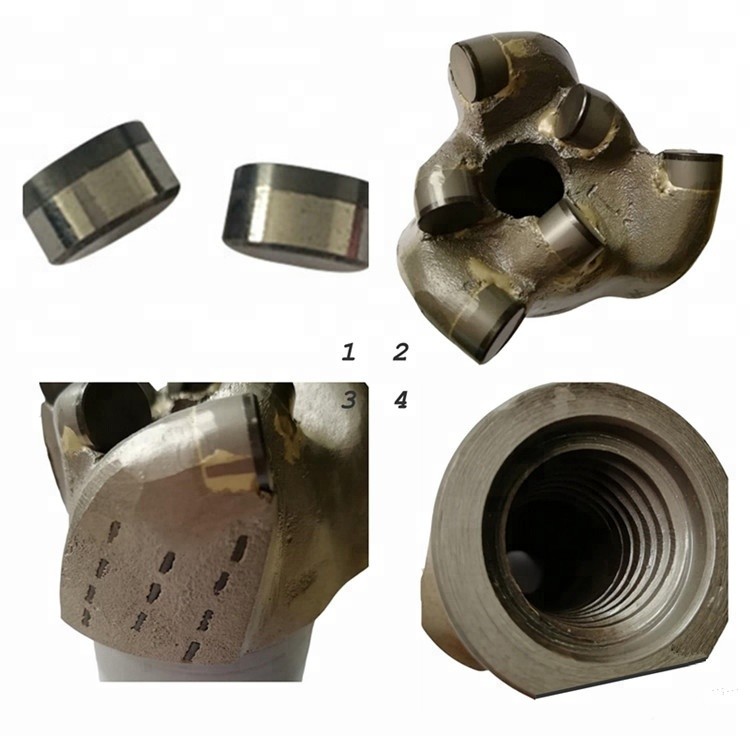

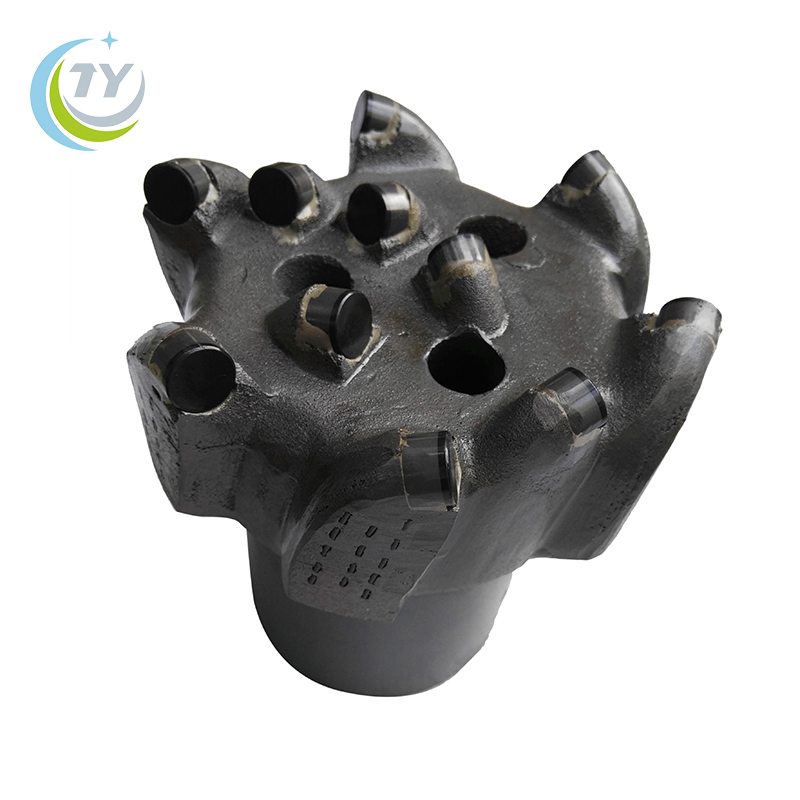

133mm PDC sintered bit is belong to matrix body bit, it is made by 1308 PDC Cutters and tungsten carbide and steel. Tungsten carbide is a metal material which is made of refractory metal carbides and binder by powder metallurgy. Tungsten carbide is very hard and wear-resistant that makes the drill bit have a long service life. You can replace the PDC Cutter on it. Superior raw material makes the 133mm PDC bits have widely usage in hole drilling of coal mining and water well drilling.
Specification of pcd sintered matrix PDC Bit
Type | OD | PDC (quality) | PDC cutter(type) | Water hole(quality) | Water hole (ID) | Suit rock formation | Connection type |
56 | 56mm/2 1/4” | 4 | 1/2” | 1 | 15mm | F=(5-12), Suitable for hard, hard hard, very hard rock drilling | AW/BW/ API/customer demand |
65 | 65mm/2 1/2” | 5 | 1/2” | 1 | 15mm | ||
75 | 75mm/3” | 6 | 1/2” | 1 | 15mm | ||
98 | 98mm/3 7/8” | 7 | 1/2” | 1 | 15mm | ||
114 | 114mm/4 1/2 | 10 | 1/2” | 1 | 15mm | ||
133 | 133mm/5 1/4” | 11 | 1/2” | 3 | 15mm | ||
143 | 143mm/5 5/8” | 12 | 1/2” | 3 | 15mm | ||
153 | 153mm/6” | 18 | 1/2” | 3 | 15mm | ||
If you have special requirement, we will customize the products for you | |||||||
Packaging & Shipping
Packaging for the 133mm matrix body flat sintered PDC bit is in the carton box;
Samples will be sent by express, batch products will be sent by air or by sea;
Available products will be sent within 5 working days, batch products will be up the PDC bit order quantity.
Xi'an Heaven Abundant Mining Equipment Co., Ltd founded on 2010 at Xi'an Shaanxi province of China. We are mainly engaged in the spare parts for mining and construction, such as mining buttons bits,; PDC bits; coring drill bits; roller cone bits; carbide drill bits; cutting picks for mining, trenching and road milling; Drill Pipe rods and Drill Rig; excavator spare parts etc. We also deputy famous oil drill on the domestic market, the purchasing team is very familiar with the domestic production of oil drill manufacturers and products performance, which can provide you with high quality products. We do export business since 2014, till now we have clients in more than 50 countries and feedback is good. Welcome international friends to come to negate businesses and expand our products to more area, we believe quality products combined good service will bring both sides more brilliant future.
Except for PDC drill bits, we also supply core bit, dth hammer and dth button bit, thread button bits etc for mining and water well drilling, welcome to contact us if you are interested in any of our products.
