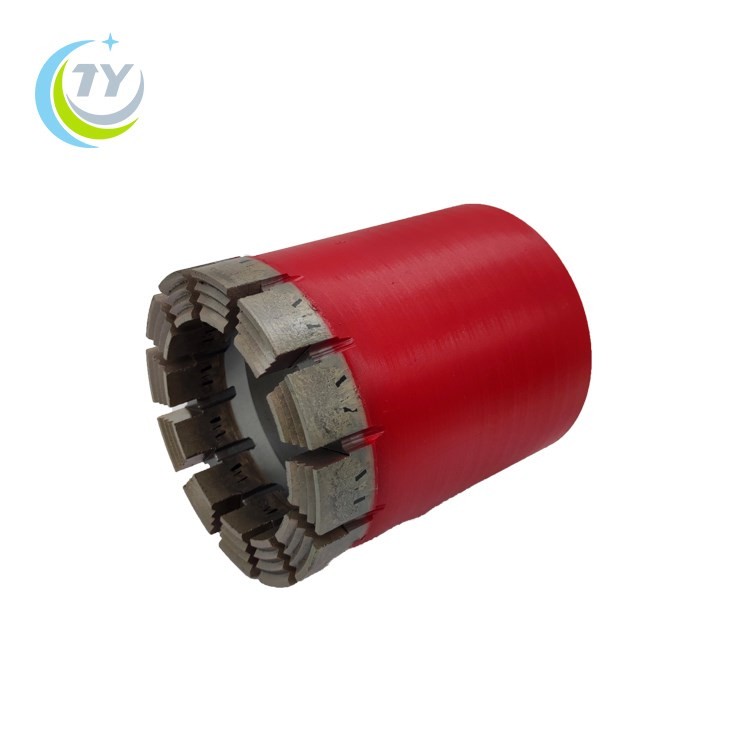

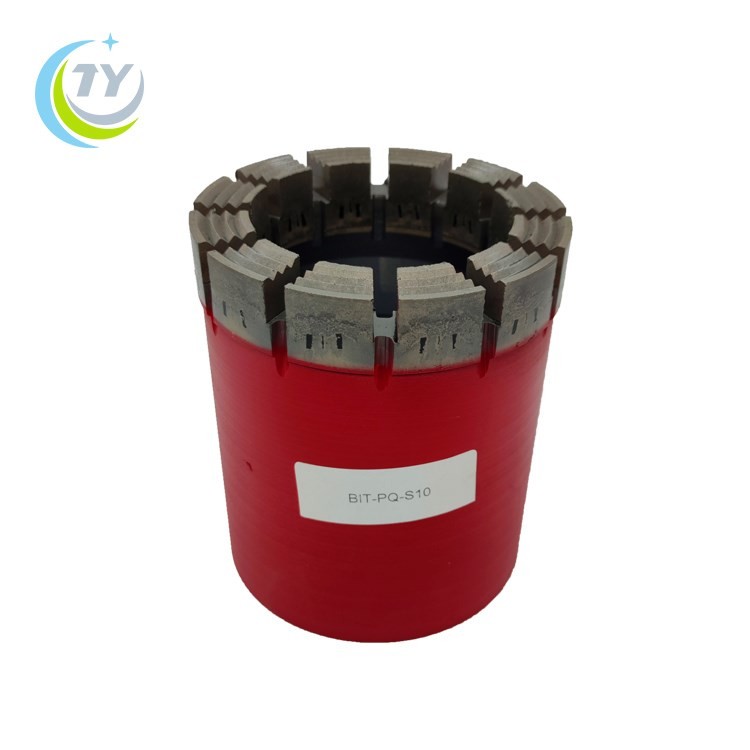

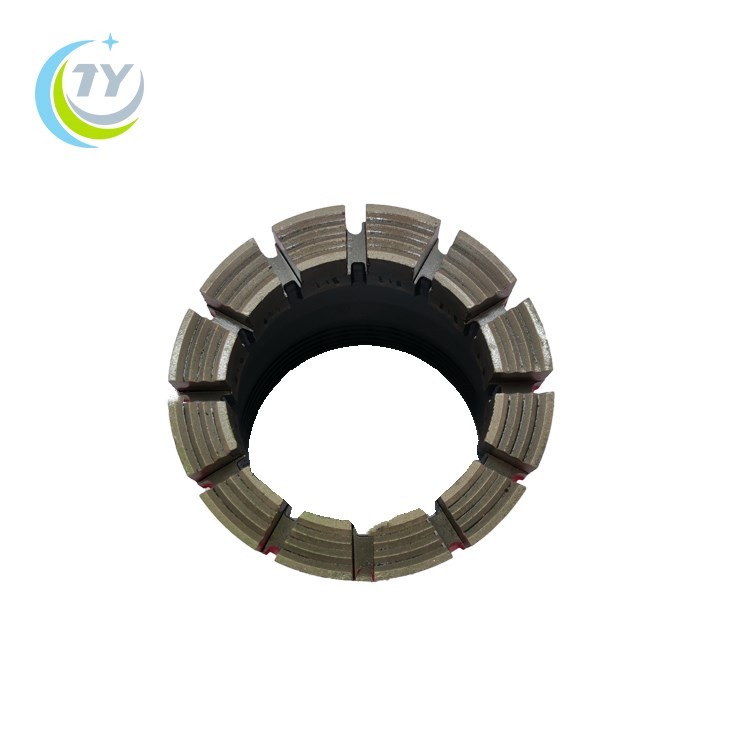

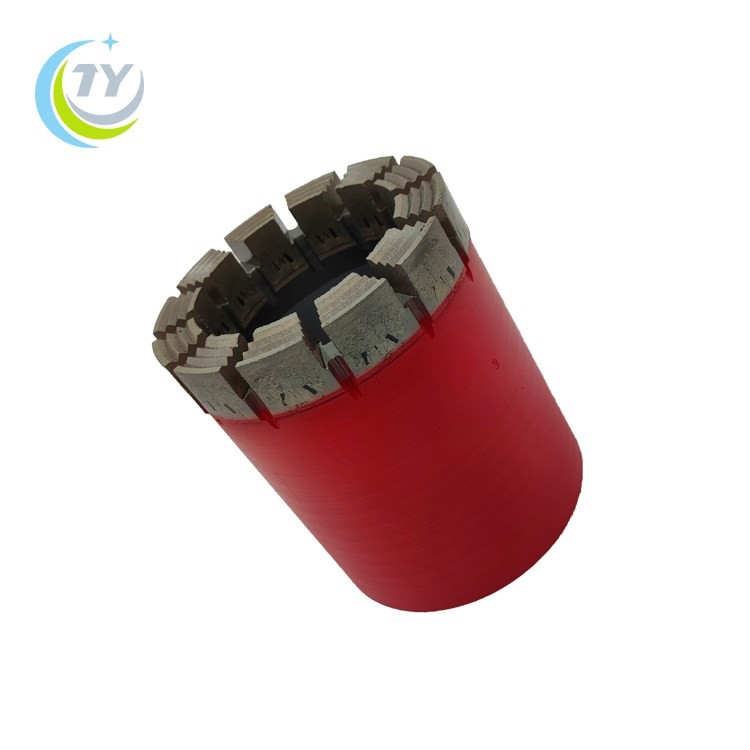

PQ Impregnated diamond core bit

$2401-49 Piece/Pieces

$23550-99 Piece/Pieces

$225100-499 Piece/Pieces

$210≥500 Piece/Pieces

Payment Type:	L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FAS,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai,Tianjin,Qingdao

Option:

122mm 4 7/8"

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: PQ

Status: New

Warranty Period: Unavailable

Applicable Industry: Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Not Available

Marketing Type: Ordinary Product

Place Of Origin: China

Part Name: Drill Bit

Owned Machinery: Drilling Tool

Material: Carbon Steel, Diamond and steel

Casting Or Forging: Forging

Application Industry: Well Drilling

Usage: Sample coring or hole drilling

Application: Geological drilling and water well drilling

Core Bit Hardness: S1~S12

Packaging: Carton box

Outside Diameter/inside Diameter: 122.0mm/85.0mm

Unit Weight: 3.8kg

Product Name: Impregnated core bit

Formation: Hard formation

Packaging & Delivery

Selling Units	Piece/Pieces
Package Type	Carton box
Picture example

The file is encrypted. Please fill in the following information to continue accessing it



Product Description

PQ impregnated diamon Core Bit is made with diamond and steel with forging process. Our company has manufacture Impregnated Diamond Core Bit since 2010, because of the high quality raw material and mature producing process we use, our TSP Core Bit, Diamond Core Bit is widely used in mining, water well drilling and geological drilling, till now we have won clients in many countries and feedback is good.

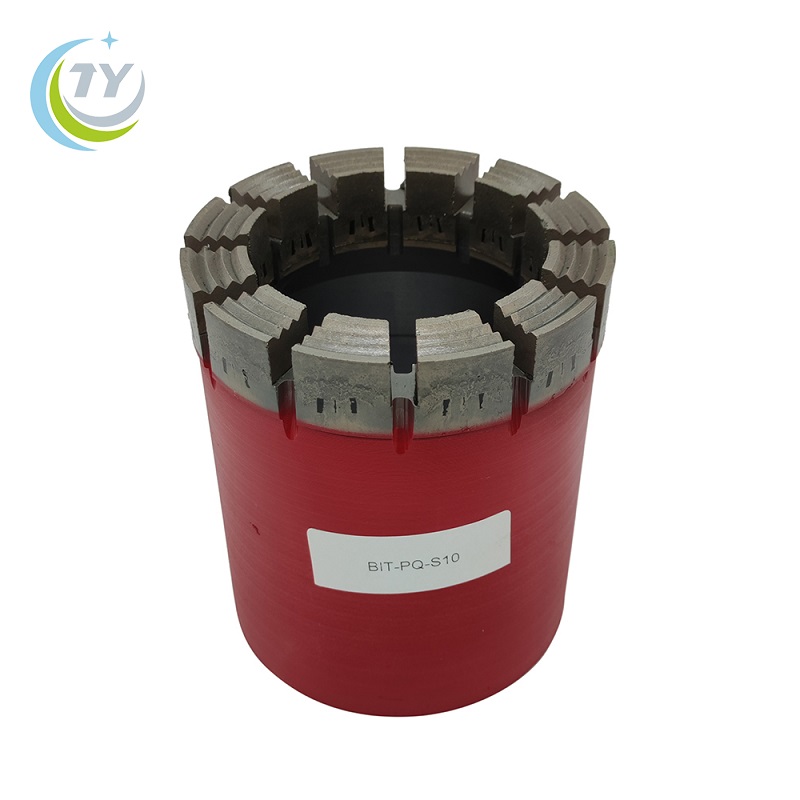

pq bit.jpg

Parameters of impregnated diamond core bit

Bit size	Core bit		Reaming shell
Bit size	Outside diameter （mm）	Insider diameter （mm）	Outside diameter (mm）
AQ	47.75	27.1	48
ATW	47.75	30.22
AGM	47.75	30.43
BQ	59.69	36.52	59.9
BQ3	59.69	33.65	59.9
NQ	75.44	47.75	75.7
NQ2	75.44	50.8
NQ3	75.44	45.21
NMLC	75.44	52.12
HQ	95.76	63.63	99.24
HQ3	95.76	61.24
HMLC	98.98	63.63
PQ	122.3	85.09	121.61
PQ3	122.3	82.93	121.61
TT46	46.18	35.4	46.3
T2-46	46.18	31.82	46.3
T2-56	56.13	41.83	56.3
TT56	56.13	45.41	56.3
T2-66	66.12	51.81	66.3
T2-76	76.12	61.82	76.4
T2-86	86.13	71.83	86.4
T2-101	101.12	83.82	101.4

Xi'an Heaven Abundant Mining Equipment Co., Ltd founded on 2010 at Xi'an Shaanxi province of China. We are mainly engaged in the spare parts for mining and construction, such as mining buttons bits,; PDC bits; coring drill bits; roller cone bits; carbide drill bits; cutting picks for mining, trenching and road milling; Drill Pipe rods and Drill Rig; excavator spare parts etc. We also deputy famous oil drill on the domestic market, the purchasing team is very familiar with the domestic production of oil drill manufacturers and products performance, which can provide you with high quality products. We do export business since 2014, till now we have clients in more than 50 countries and feedback is good. Welcome international friends to come to negate businesses and expand our products to more area, we believe quality products combined good service will bring both sides more brilliant future.

Clients visit

Buyer feedback

Except for impregnated core bit, we also supply casing shoe, reaming shell, core lifter, core lifter case, core catcher, core barrel, core tube, drill pipes, casing pipes and related products, if you are intersted in any of our products, please feel free to contact us.
