Xi'an Heaven Abundant Mining Equipment CO.,LTD
$1051-49 Piece/Pieces
$10050-99 Piece/Pieces
$95100-499 Piece/Pieces
$90≥500 Piece/Pieces
| Payment Type: | L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai,Tianjin,Qingdao |
Model No.: NW
Status: New
Warranty Period: Unavailable
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Not Available
Marketing Type: Ordinary Product
Place Of Origin: China
Part Name: Drill Bit
Owned Machinery: Drilling Tool
Material: Carbon Steel, Diamond and steel
Casting Or Forging: Forging
Application Industry: Well Drilling
Usage: Sample coring or hole drilling
Application: Geological drilling and water well drilling
Packaging: Carton box
Outside Diameter/inside Diameter: 92.0mm/76.2mm
Unit Weight: 1.5kg
Hardness: K5
| Selling Units | Piece/Pieces |
| Package Type | Carton box |
| Picture Example |  |
The file is encrypted. Please fill in the following information to continue accessing it

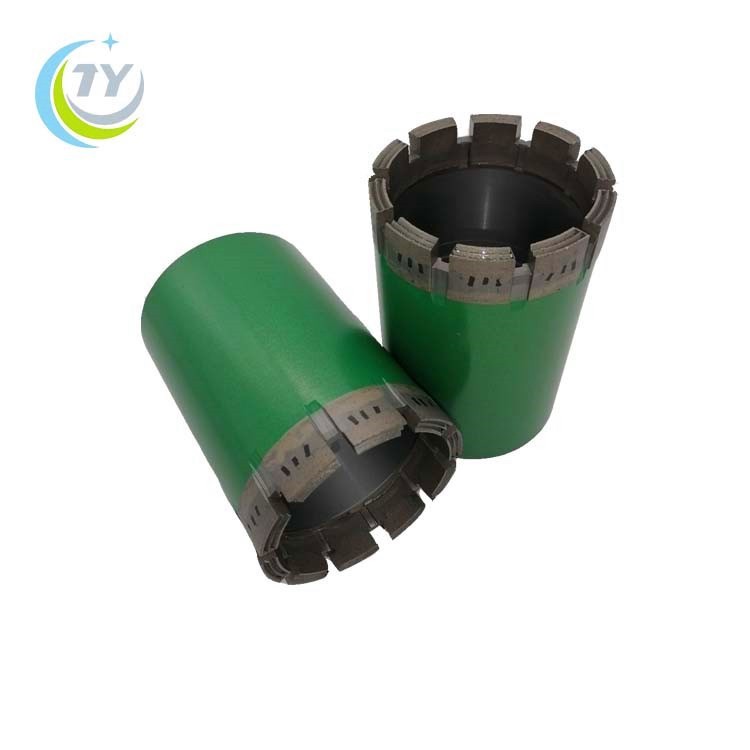

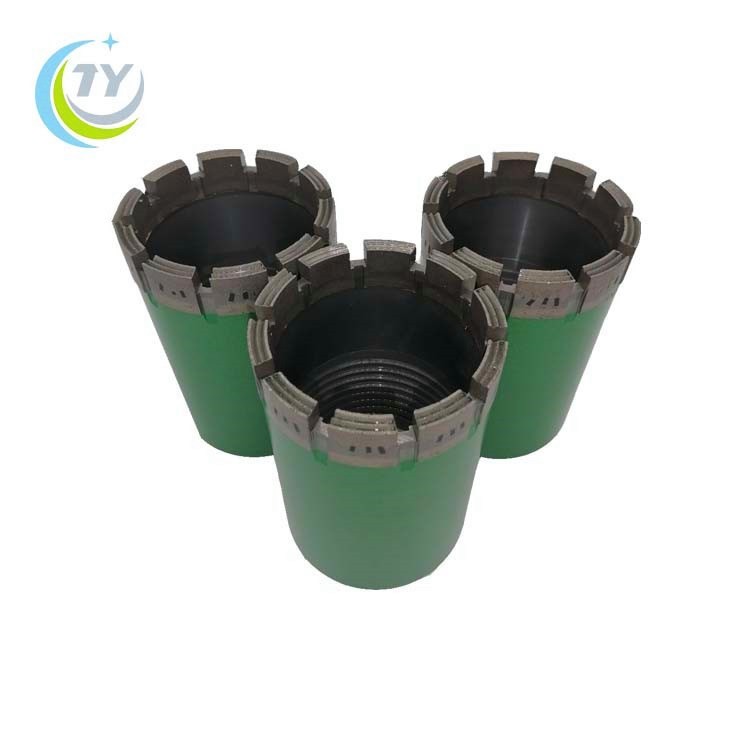

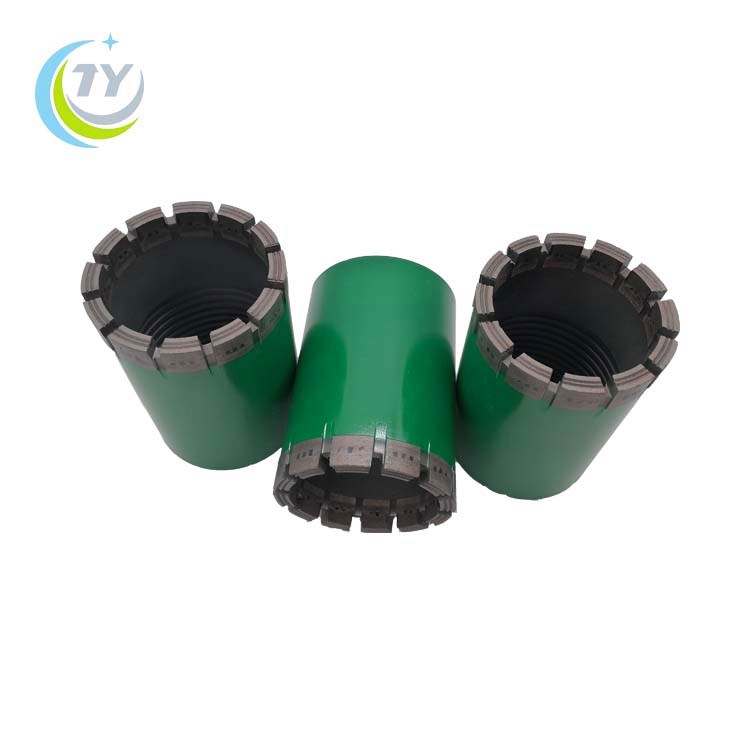

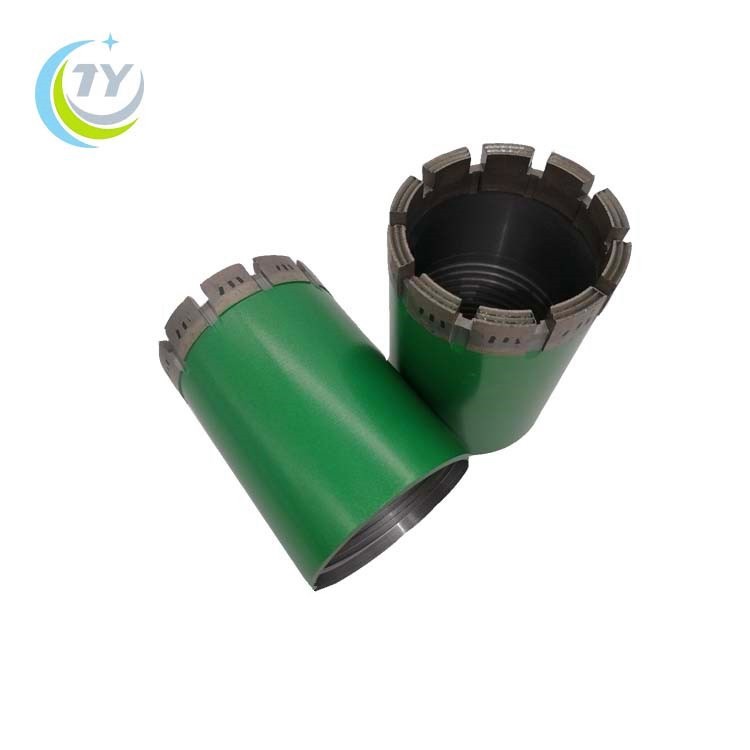

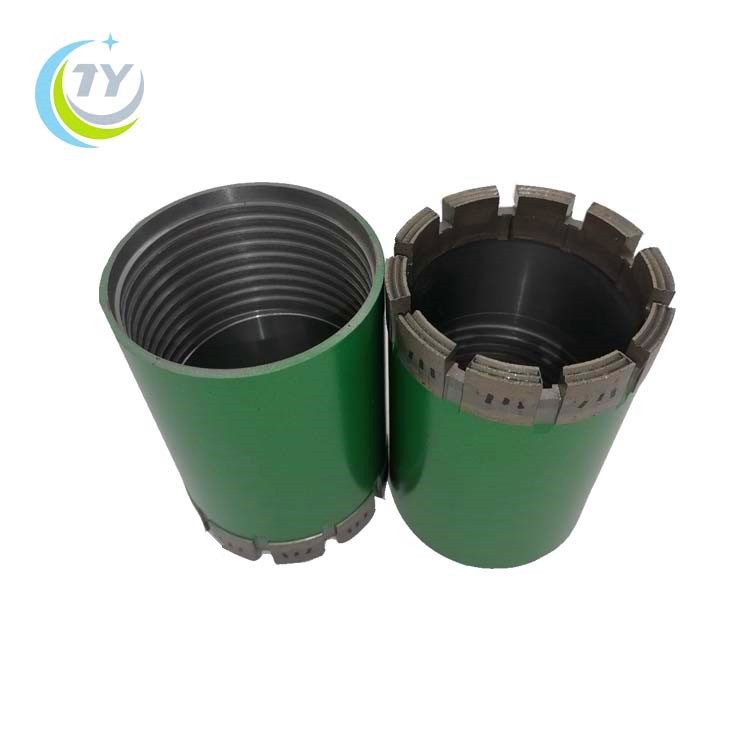

NW casing shoe is made with diamond and steel with forging process. Diamond casing shoe is use with casing pipe to protect the casing pipe head. We supply casing shoe and related products since 2010, because of the high quality raw material and mature producing process we use, our Diamond Core Bit is widely used in mining, water well drilling and geological drilling, till now we have won clients in many countries and feedback is good.
Parameters of casing shoes
Casing shoe size | Matric system(mm) | |
Outside diameter | Inside diameter | |
AW | 59.5 | 48.2 |
BW | 75.3 | 60.2 |
NW | 92.0 | 76.2 |
HW | 117.6 | 99.7 |
HWT | 117.6 | 99.7 |
PW | 143.5 | 124.5 |
PWT | 143.5 | 124.5 |
SW | 172.5 | 146.7 |
Company information
Xi'an Heaven Abundant Mining Equipment Co.,Ltd is one of the core bits manufacuturers and exporters in China. Our company adpots high quality raw material to produce quality products with good price since 2010, except for Impregnated Core Bit, we also supply PDC Bit, Tricone Bit, Cutting Tools, rock drilling tools and other drilling accessories. Welcome to contact us if you have any requirement of our product.
