Xi'an Heaven Abundant Mining Equipment CO.,LTD
$190-230 /Piece/Pieces
| Payment Type: | L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,Express Delivery,CFR,CIF,DAF,EXW,DES,FAS,FCA,CPT,CIP,DDP,DDU |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai/tianjin/guangzhou/qingdao/ningbo etc |
Condition: New
Warranty: Unavailable
Applicable Industries: Energy & Mining
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Machine Type: Drilling Tool
Material: Carbon Steel
Processing Type: Forging

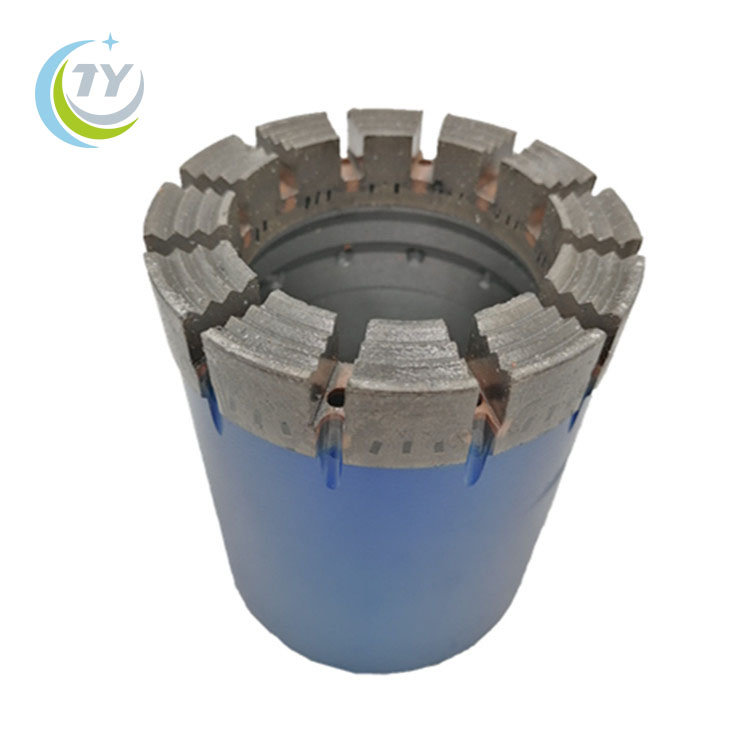

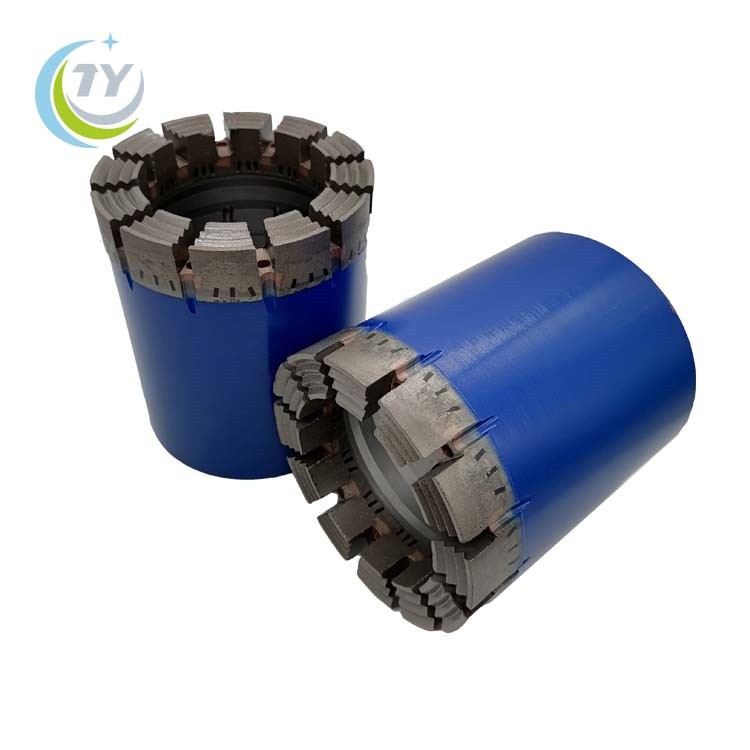

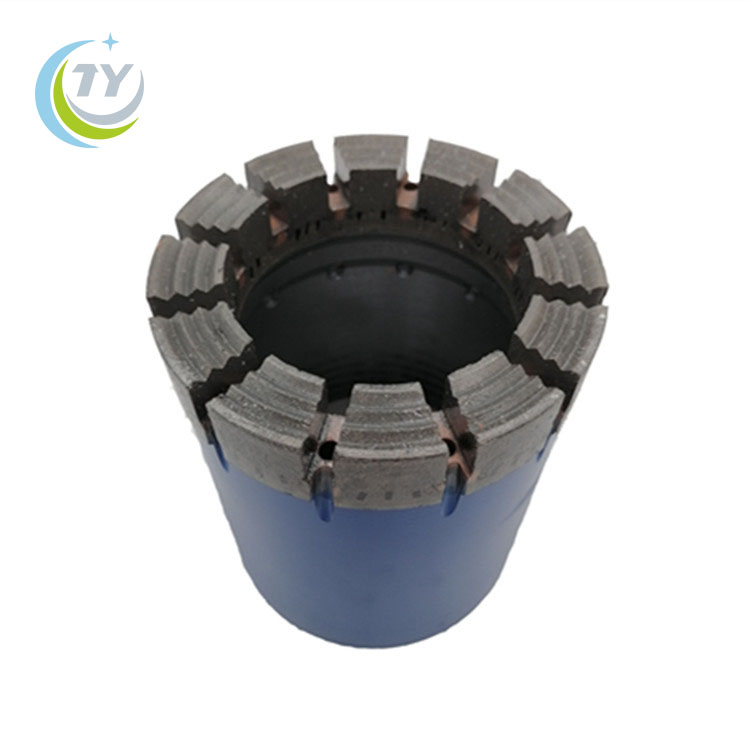

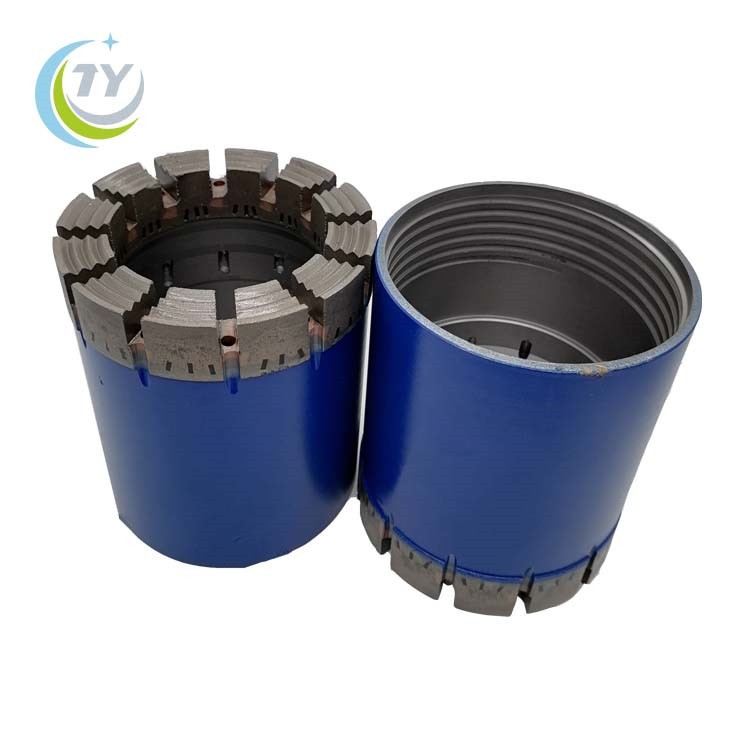

Item Name: PQ3 impregnated diamond core drill bit
Rock Formation: Hard rock formation
Application: Geological drilling and mineral exploration
Core Bit Color: green, Red, grey or customized
Matrix Height: 14mm
Unit Weight: 3.3kg
Local Service Location: None
Use : Well Drilling and geological drilling
Type: Impregnated diamond Core Drill Bit
Place Of Origin: Shaanxi, China
| Selling Units | Piece/Pieces |
| Package Type | Packaging for 4 7/8 inch PQ3 diamond core bit is in carton box or plastic box |
| Picture example |  |
The file is encrypted. Please fill in the following information to continue accessing it

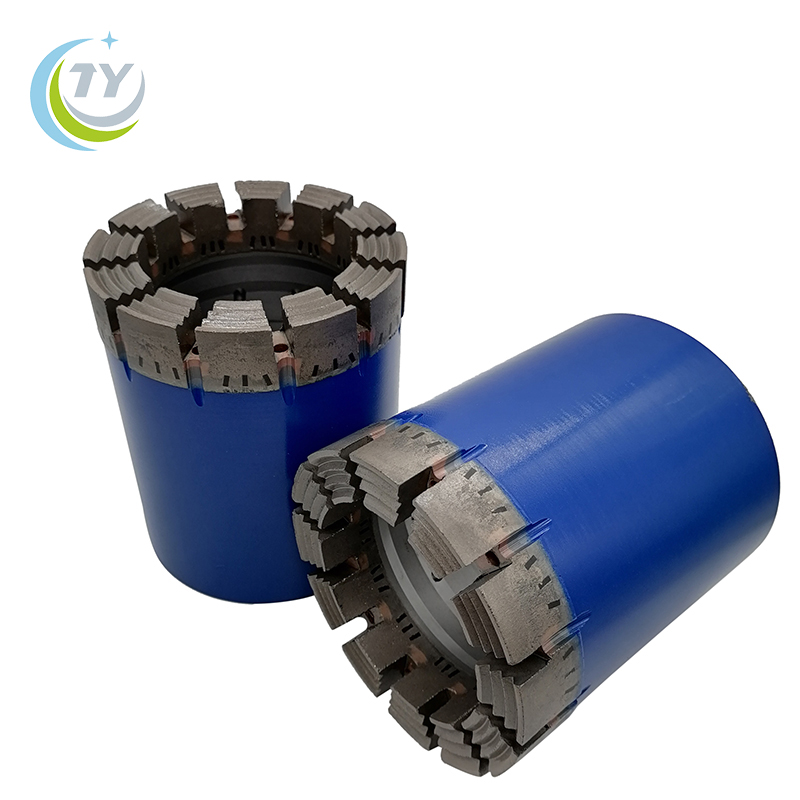

PQ3 diamond bit belong to wireline triple tube core barrel drilling bit, it is made by diamond and steel with forging process, Q3 series diamond bit mainly use for broken formation, the small holes on the water tube is easy for flow out the water when drilling, thus can avoid the samples be washed away.
Product name | PQ3 impregnated diamond bit |
Material | Diamond and steel |
Process | Forging |
Size | PQ3 |
OD/ID | 122.0/83.0mm |
Unit weight | 3.3kg |
Application | Geological drilling and water well drilling |
Rock formation | Broken formation |
MOQ | 1 piece |
Packaging | Carton box |
HS code | 8207199000 |
Parameters of Impregnated Diamond Core Bit
Double tube surface | ||||
Size( surface exploration drill | Matric system(mm) | Imperial system(in) | ||
Hole diameter | Core diameter | Hole diameter | Core diameter | |
BQ | 60 | 36.4 | 2.36 | 1.43 |
NQ | 75.7 | 47.6 | 2.98 | 1.88 |
HQ | 96.1 | 63.5 | 3.875 | 2.5 |
PQ | 122.7 | 85 | 4.83 | 3.34 |
Triple tube surface | ||||
NQ3 | 75.7 | 45 | 2.98 | 1.78 |
HQ3 | 96.1 | 61.1 | 3.78 | 2.41 |
PQ3 | 122.7 | 83 | 4.83 | 3.27 |
Xi'an Heaven Abundant Mining Equipment Co.,Ltd is one of the rock drilling tools manufacuturers and exporters in China. Our company adpots high quality raw material to produce quality products with good price since 2010 and we do export business since 2014, till now we have clients in more than 50 countries. Except for Taper Button Bit, we also supply taper crosss bit, taper chisel bit, taper rods, Thread Button Bit, thread rods, retrac button bit, shank adapter, coupling sleeves, DTH bit, DTH hammers, PDC Bit, Tricone Bit, Cutting Tools, etc and other Related Drilling Accessories. Welcome to contact us if you have any requirement of our products.
In the past 9 years, depending on quality products and good service, our standard core bits have gone to many countries, especially in the Middle East, Asia, West Europen, etc. If you have demands for our AQ, BQ, NQ, HQ, PQ, NMLC, NQ3, PQ3 etc impregnated core bits and AQ, BQ, NQ, HQ, PQ Drill Rods, reaming shells or core barrels etc, welcome to contact us.
