Status: New
Warranty Period: Unavailable
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Not Available
Marketing Type: Ordinary Product
Place Of Origin: China
Part Name: Drill Bit
Owned Machinery: Drilling Tool
Material: Carbon Steel, Diamond and steel
Casting Or Forging: Forging
Application Industry: Well Drilling
Usage: Sample coring or hole drilling
Application: Geological drilling and water well drilling
Core Bit Hardness: S1~S12
Packaging: Carton box
Outside Diameter/inside Diameter: 59.5mm/36.3mm
Unit Weight: 0.8kg
| Selling Units | Piece/Pieces |
| Package Type | Carton box |
| Picture Example |  |
The file is encrypted. Please fill in the following information to continue accessing it

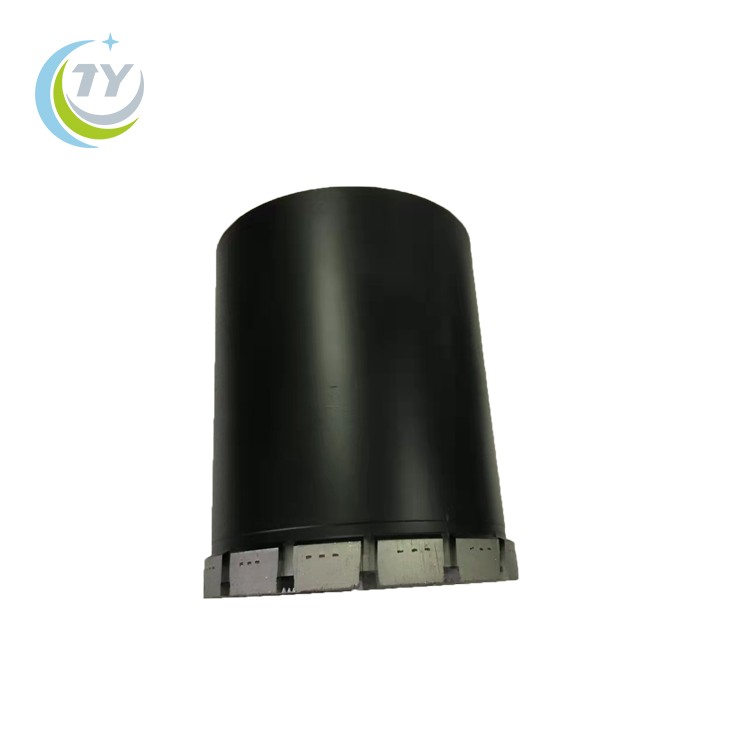

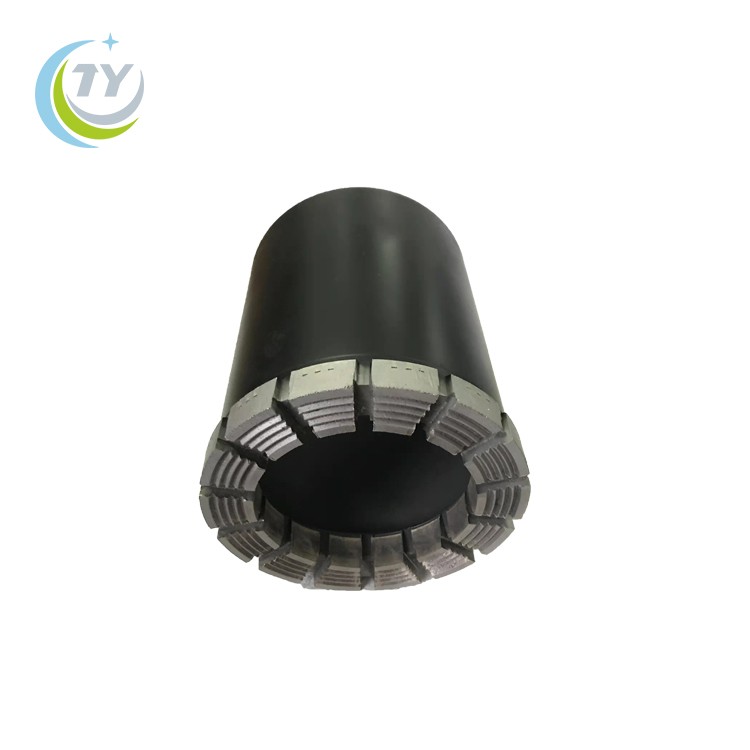

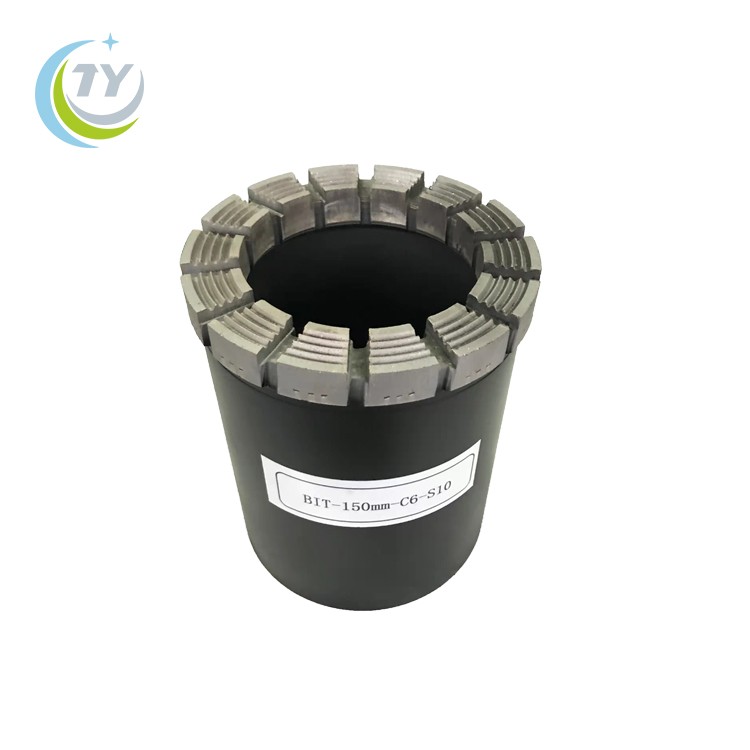

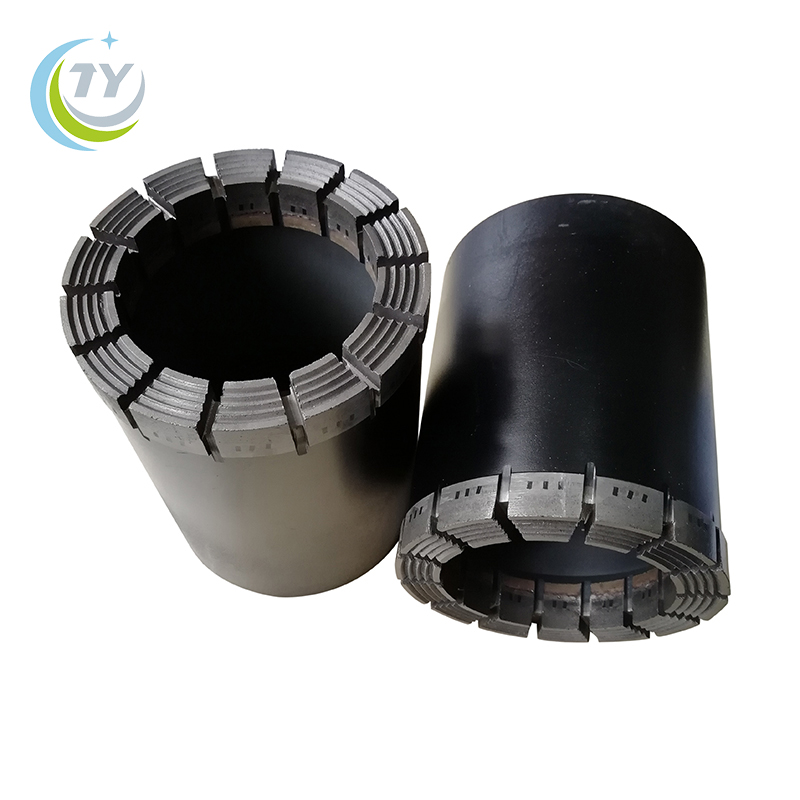

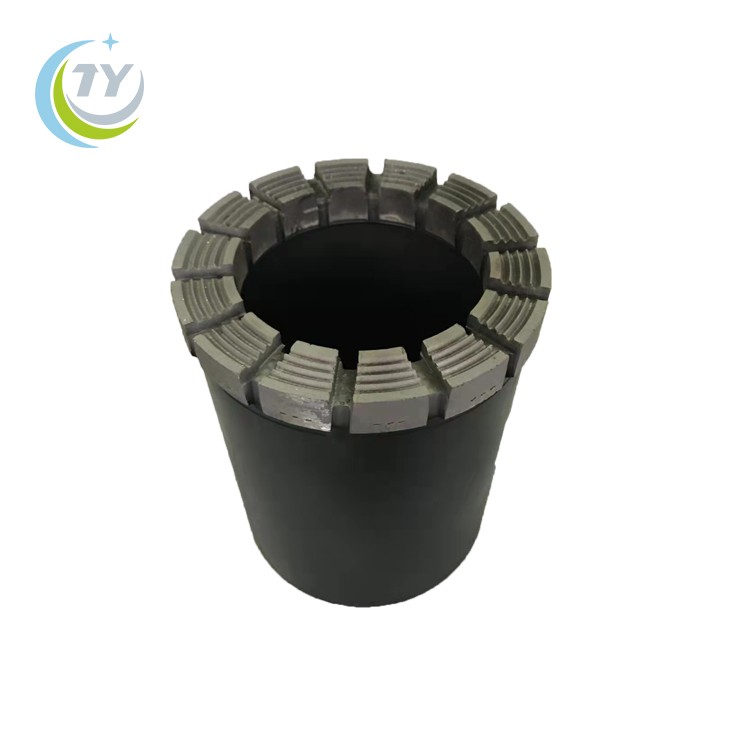

150mm Impregnated Diamond Core Bit is made with diamond and steel with forging process, it belongs to customized size, the inside thread is same with SQ impregnated core bit. Our company has manufacture impregnated Diamond Core Bit for single tube core barrel and double tube core barrel since 2010, because of the high quality raw material and mature producing process we use, our diamond Core Bit is widely used in mining, water well drilling and geological drilling, till now we have won clients in many countries and feedback is good.
Parameters of Impregnated Core Bit
Bit size | Core bit | Reaming shell | |
Bit size | Outside diameter (mm) | Insider diameter(mm) | Outside diameter(mm) |
AQ | 47.75 | 27.1 | 48 |
ATW | 47.75 | 30.22 | |
AGM | 47.75 | 30.43 | |
BQ | 59.69 | 36.52 | 59.9 |
BQ3 | 59.69 | 33.65 | |
NQ | 75.44 | 47.75 | 75.7 |
NQ2 | 75.44 | 50.8 | |
NQ3 | 75.44 | 45.21 | |
NMLC | 75.44 | 52.12 | |
HQ | 95.76 | 63.63 | 99.24 |
HQ3 | 95.76 | 61.24 | |
HMLC | 98.98 | 63.63 | |
PQ | 122.3 | 85.09 | 121.61 |
PQ3 | 122.3 | 82.93 | |
TT46 | 46.18 | 35.4 | 46.3 |
T2-46 | 46.18 | 31.82 | |
T2-56 | 56.13 | 41.83 | 56.3 |
TT56 | 56.13 | 45.41 | |
T2-66 | 66.12 | 51.81 | 66.3 |
T2-76 | 76.12 | 61.82 | 76.4 |
T2-86 | 86.13 | 71.83 | 86.4 |
T2-101 | 101.12 | 83.82 | 101.4 |
Company information
Xi'an Heaven Abundant Mining Equipment Co.,Ltd is one of the rock drilling tools manufacuturers and exporters in China. Our company adpots high quality raw material to produce quality products with good price since 2010 and we do export business since 2014, till now we have clients in more than 50 countries. Except for Taper Button Bit, we also supply taper crosss bit, taper chisel bit, taper rods, Thread Button Bit, thread rods, retrac button bit, shank adapter, coupling sleeves, DTH bit, DTH hammers, PDC Bit , Tricone Bit, Cutting Tools, etc and other Related Drilling Accessories. Welcome to contact us if you have any requirement of our products.
Clients visit
Buyer feedback
In the past 9 years, depending on quality products and good service, our standard core bits have gone to many countries, especially in the Middle East, Asia, West Europen, etc. If you have demands for our AQ, BQ, NQ, HQ, PQ, NMLC, NQ3, PQ3 etc impregnated core bits and AQ, BQ, NQ, HQ, PQ Drill Rods , reaming shells or core barrels etc, welcome to contact us.
