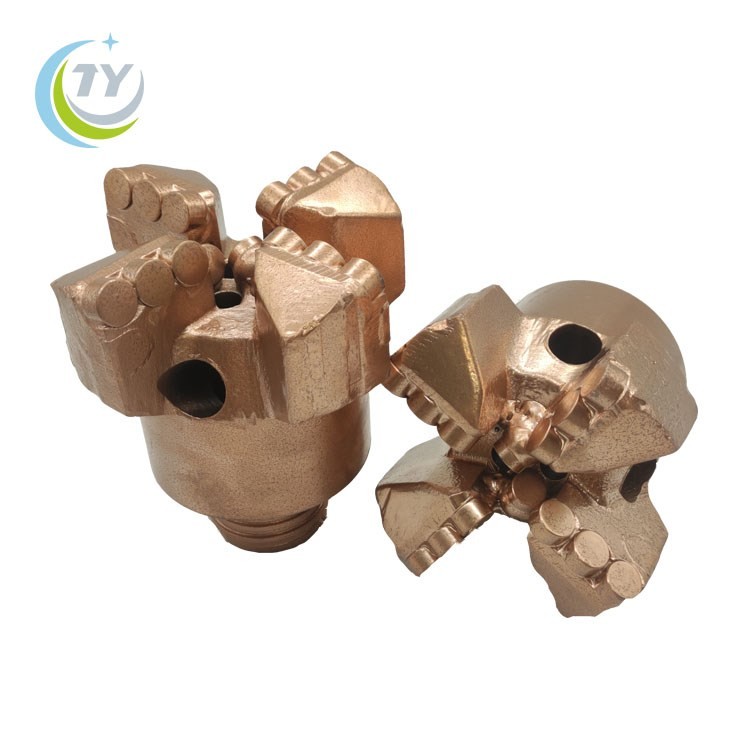

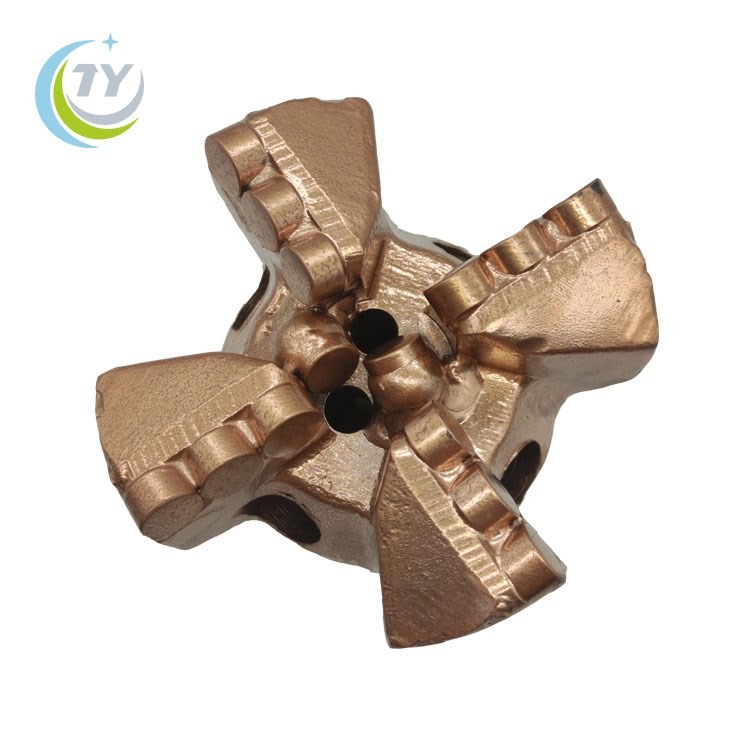

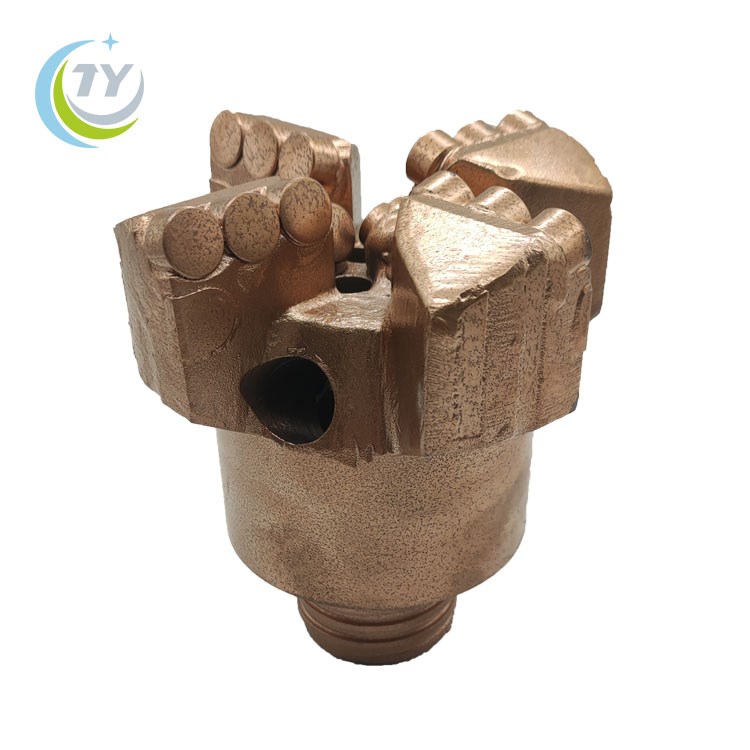

Customized well drilling 113mm PCD bit 4 wings

Customized well drilling 113mm PCD bit 4 wings

$120-150 /Piece/Pieces

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,Express Delivery,CFR,CIF,DAF,EXW,DES,FAS,FCA,CPT,CIP,DEQ,DDP,DDU
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai/tianjin/guangzhou/qingdao/ningbo etc

Option:

113mm 114mm 4 1/2"

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: 113MM

Brand: TY

Status: New

Warranty Period: Unavailable

Applicable Industry: Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Not Available

Marketing Type: Ordinary Product

Place Of Origin: China

Part Name: Drill Bit

Owned Machinery: Drilling Tool

Casting Or Forging: Forging

Application Industry: Well Drilling

Product Name: Non coring PDC bit

Material: PDC cutters and steel

Use: Hole drilling

Application: Mining and water well drilling

Formation: Soft to medium hard formation

Diameter: 113mm or 4 1/2 inch

Thread: API, geological thread and customized thread

Unit Weight: 3.5kg

MOQ: 1 piece

Packaging: Carton box

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Carton box
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

4 1/2" 113/114MM PDC bit is use for hole drilling in mining and water well drilling. Its drilling footage speed is faster in soft formation when compared with Tricone Bit and diamond bit. We have 4 wings PDC with size 75mm, 89mm, 94mm, 98mm ,113mm, 133mm, 153mm, 171mm, 215mm, 250mm and 311mm.

Rock formation for 3 and 4 wings PDC bit

Type formation		Soft(coal,clay,mudstone)				Medium hard (rock, sandstone, limestone)				Very hard(Marble, flint,granite)
PDC concave drill bit	Rock grade	F=1	2	3	4-5	6-7	7-8	8-10	10-12	13-15	16-18	18-20	20-25
	Rock grade	D=1	2	3	4	5	6	7	8	9	10	11	12
	3 wings	√	√	√	√	√	√	√	√
	4 wings	√	√	√	√	√	√	√	√	√

Xi'an Heaven Abundant Mining Equipment Co.,Ltd founded on 2010 at Xi'an Shaanxi province of China. We are mainly engaged in the spare parts fro mining and construction, such as PDC Drill Bit, Tricone Bit, PDC Cutter , Rock Drilling Tool, Diamond Core Bit, Drill Pipe, Cutting Tools etc. We also deputy famous oil exploration drilling bit in the domestic market, the purchasing team is very familiar with the domestic production of oil drill manufacturers and products performance, which can provide you with high quality products. We do export business since 2014, till now we have clients in more than 50 countries and feedback is good. Welcome international friends to come to negoate businessness and expand our products to more area, we belive quality products combined good service will bring both sides more brliant future.

pdc bit type

Except for 4 wings PDC bit, we also supply 3 Wings Pdc Bit, multi-blade PDC bit, diamond Core Bit , tricone bit, rock drilling tools, PDC Cutters and cutting tools for mining, trenching and road milling etc since 2010, we do export business since 2014, till now we have clients in more than 50 countries and feedback is good.
